Duplex LC Uniboot Connector Easy Assemble With UL Rated Plastic Housing

Products

Dome Fiber Optic Splice Closure

Horizontal Fiber Optic Splice Closure

Duplex LC Uniboot Connector Easy Assemble With UL Rated Plastic Housing

Detail Information

Product Description

Detail Information

Name:

Uniboot LC Connector

Highlight:

Uniboot LC Connector

LC Uniboot Connector

Product Description

LC Uniboot Connector

The duplex LC connector , which allows the polarity to be switched from A-B to A-A without any tools

LC Uniboot Connector switch polarity

Product name:lc duplex uniboot connector

Fiber Count: Duplex

Fiber Mode: Multi Mode

Polish Type: PC

Cable Diameter: 3.0mm

Durability: >1000times

How to use:very easy to assemble

Application:Communication/Networking/Tele/FTTH/ODF

Ferrules:Ceramics

Certificate:ROHS/SGS

Tensile Strength:200 ~ 600g

Material:UL-rated plastic housing

Lead Time:

Quantity(Pieces)	1 - 100000	>100000
Est. Time(days)	7	To be negotiated

Connector Parts: Dust Cap, Violet Outer Housing, Ferrule Assembly, Spring, Small Transparent Tube, Inner Frame, Uper Cover, Below Cover, Stopper, Riveting Ring, Heat Shrink Tube, White Boot

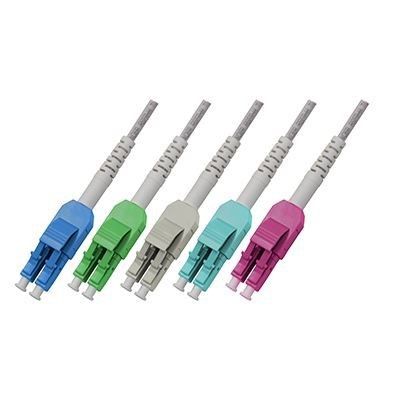

Housing Optional Colors: Blue, Green, Beige, Aqua, Violet, Lemon Green (Color can be customized)

Features

1.Uniboot with a Single Housing

2.Unique Push-Pull Design and Function

3.Easy to Assemble and Use

4.Low Insertion Loss and Back Reflection

5.High Repeatability and Reliability

Parameter	LC,SC,ST,FC
	SM		MM
	UPC	APC	PC
Operating Wavelength(nm)	1310/1550		850/1300
Insertion Loss(dB)	≤0.2	≤0.2	≤0.2
Return Loss(dB)	≥50	≥60	≥30
Inner diameter of ferruless	125.3~126.3μm		125.5~126.5μm
Ferrules Concentricity	<1.0μm,<0.5μm,<0.3μm		<4.0μm
Storage Temperature(℃)	-40℃~85℃
Working temperature	-40℃~85℃
Cable diameter	Φ0.9 / Φ2.0 / Φ3.0
Fiber Length	1m,2m….. any length optional.

Similar product

YingFeng dedicates to the developing, production, marketing of the Fiber Optic Connector,Indoor/Outdoor Patch Cord, Splitter, Adapter, Attenuator, and so on.

Application

Data Centers

Local Area Networks

High-Density Applications

Interconnects

Company Show

Our major products are Fiber Optic Connector ,Fiber Optic Adapter ,Fiber Optic patchcord, pigtail,PLC splitters,etc.Professional research ,design and production team,The concept of innovation and mutual benefit and win-win. The multiple OEM/ODM service is provided for famous brand of domestic and overseas.

Our Certificate

Frequently Asked Questions:

1.What is your MOQ?

Normally is 1pcs/item,could be coordinated if you have detail requirements.

2.How about your delivery date?

Delivery date is about 3-5days, it depends on the order quantity.

3.Can you supply sample for customers?

of course, however the delivery cost will be charged on customer's account

4.How about your price?

We are supplying products with very competitive price based on good performance.

5.Do you offer OEM Service ?

We accept OEM, ODM.
